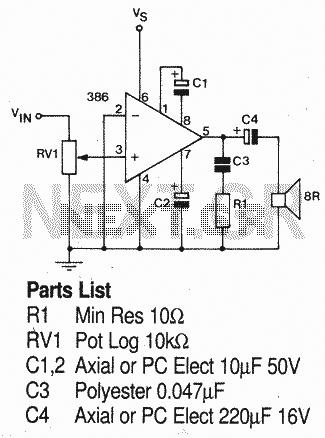

A power amp designed for use in low voltage, especially battery-operated, applications. For minimum parts count, C1 and C2 can be omitted. With pins 1 and 8 open circuit the gain in internally set to 20 dB.
 |
